Draft Genome Sequences of Bifidobacterium animalis Consecutively Isolated from Healthy Japanese Individuals

Tomoya Tsukimi1,2, Tsubasa Watabe1,2, Kazuki Tanaka1,2, Mitsuhiko P. Sato3, Haruo Suzuki1,4, Masaru Tomita1,2,4, Shinji Fukuda1,2,5,6,7 Corresponding address

1. Institute for Advanced Biosciences, Keio University, 246-2 Mizukami, Kakuganji, Tsuruoka, Yamagata 997-0052, Japan.
2. Systems Biology Program, Graduate School of Media and Governance, Keio University, 5322 Endo, Fujisawa, Kanagawa 252-0882, Japan.
3. Department of Bacteriology, Faculty of Medical Sciences, Kyushu University, 3-1-1 Maidashi, Higashi, Fukuoka 812-8582, Japan.
4. Faculty of Environment and Information Studies, Keio University, 5322 Endo, Fujisawa, Kanagawa 252-0882, Japan.
5. Intestinal Microbiota Project, Kanagawa Institute of Industrial Science and Technology, 3-25-13 Tonomachi, Kawasaki, Kanagawa 210-0821, Japan.
6. Transborder Medical Research Center, University of Tsukuba, 1-1-1 Tennodai, Tsukuba, Ibaraki 305-8575, Japan.
7. Metabologenomics, Inc., 246-2 Mizukami, Kakuganji, Tsuruoka, Yamagata 997-0052, Japan.

This is an open access article distributed under the terms of the Creative Commons Attribution License (https://creativecommons.org/licenses/by/4.0/). See http://ivyspring.com/terms for full terms and conditions.
Citation:
Tsukimi T, Watabe T, Tanaka K, Sato MP, Suzuki H, Tomita M, Fukuda S. Draft Genome Sequences of Bifidobacterium animalis Consecutively Isolated from Healthy Japanese Individuals. J Genomics 2020; 8:37-42. doi:10.7150/jgen.38516. Available from http://www.jgenomics.com/v08p0037.htm

File import instruction

Abstract

Bifidobacterium species are well recognized as probiotics and colonized in various parts of the human body. Here, we report the draft genome sequences of Bifidobacterium animalis isolated from two healthy Japanese volunteers, one of which was sampled twice before and after a 10-year interval. A core genome phylogeny analysis indicated that the strains isolated from the same volunteer were closely related. This paper is the first report of multiple draft genome sequences of B. animalis independently isolated from the same individual and provides insight into the probiotic potential of a member of this species.

Keywords: Whole-Genome Sequencing, Intestinal Microbiota, Bifidobacterium animalis

Introduction

About 40 trillion of bacteria inhabit the human body, and the majority of these are located in the gastrointestinal tract [1]. Previous studies have shown a relationship between the human gut microbiota and various diseases [2,3], and some bacteria, which are referred to as probiotics, are considered to be beneficial for human health [4]. The genus Bifidobacterium is one well-known group of probiotic bacteria. Species belonging to the genus are gram-positive, rod-shaped, and are anaerobic [5]. They colonize in food, such as yogurt, and various parts of the human body including the gut, vagina, oral cavity, and breast milk [5]. In the human gut, they ferment carbohydrates into short-chain fatty acids (SCFAs) such as acetate, which have beneficial effects on human health [2]. Bifidobacterium species do not produce butyrate directly; however, they increase butyrate production via cross-feeding with butyrate-producing bacteria in the colon [6]. Bifidobacterium species have great potential as a probiotics, but they are not always colonized when they are supplied as a probiotic intervention [7]. The genus Bifidobacterium contains 69 species and 10 subspecies (http://www.bacterio.net/; accessed 26 February 2019) [8]. In this study, we focused on Bifidobacterium animalis, which has two subspecies, subsp. animalis and subsp. lactis. A previous study reported the beneficial effect of the species on ameliorating the risk of food allergy [9] and maintaning remission in ulcerative colitis [10]. Here, we report three draft genome sequences of B. animalis subsp. lactis isolated from two healthy Japanese individuals, one of which was sampled twice before and after a 10-year interval.

Materials and Methods

Sample Collection and Isolation of B. animalis

Fecal samples were collected from two healthy Japanese volunteers (one subject was 30 years old, and another was 35 and 45 years old at the time of sampling; Table 1) and stored at -80 °C until use.

Each fecal sample (20 mg) was suspended in 1 mL of sterile phosphate-buffered saline (PBS), which was then used to generate two dilutions in PBS, 1:1,000 and 1:10,000. A 50 µL of aliquot from each suspension was inoculated onto a transgalactosylated oligosaccharide (TOS) propionate agar medium plate (Yakult Pharmaceutical Industry Co., Ltd., Tokyo, Japan), which can isolate Bifidobacterium from feces [11], and cultured for 1 day at 37 °C under anaerobic conditions. Ten colonies for each subject were randomly selected; inoculated with sterile pipette tips into a 96-well plate (Greiner Bio-One International GmbH, Frickenhausen, Germany) containing 500 µL of De Man, Rogosa and Sharpe (MRS) liquid medium (FUJIFILM Wako Pure Chemical Corporation, Osaka, Japan); and cultured for 1 day at 37 °C under anaerobic conditions.

After cultivation, we confirmed the identity of this species with PCR based on 16S rRNA gene amplification using a Bifidobacterium-specific primer [12]. Genomic DNA from samples confirmed as Bifidobacterium was extracted with the DNeasy Blood & Tissue kit (Qiagen, Hilden, Germany).

Genome Sequencing, Assembly, and Annotation

The sequencing libraries were prepared using the NEBNext Ultra II FS DNA Library Prep (New England Biolabs, Ipswich, Massachusetts, U.S.) and sequenced with the Illumina HiSeq 2500 (Illumina, Inc. San Diego, California, U.S.). In total 3,282,698 reads (which consisted of 151-bp paired-end reads) were produced (1-Y0; 1,221,120 reads, 2-Y0; 971,770 reads, 2-Y10; 1,089,808 reads). The reads were filtered for read quality using Platanus_trim v1.0.7 (http://platanus.bio.titech.ac.jp/pltanus_trim; accessed 23 February 2019) with default parameters, which resulted in the retention of 3,265,842 reads (1-Y0; 1,215,194 reads, 2-Y0; 965,958 reads, 2-Y10; 1,084,690 reads). Trimmed reads were assembled with Platanus v1.2.4 [13] with default parameters, and contigs that were ≤ 300 bp were discarded based on an in-house script deposited in GitHub (https://github.com/MitsuhikoP/cut_short_fasta.git). Genome completeness was estimated using Benchmarking Universal Single-Copy Orthologs (BUSCO) v1 [14] with the bacteria data set by submitting assembled sequences (FASTA formatted text file) as query to the gVolante web server [15] and Quality assessment tool for genome assemblies (QUAST) [16]. Of the 40 BUSCO group genes, all genes were completely or partially recovered in the assembly and the genomes fraction of three draft genome sequences to complete genome sequence of B. animalis subsp. lactis DSM 10140 were over 98 % (Table 2). Genes were annotated using the DDBJ Fast Annotation and Submission Tool (DFAST) pipeline [17]. Identification of B. animalis was performed with BLAST+ v2.4.0 [18,19], and pyani v0.2.7 (https://github.com/widdowquinn/pyani; accessed 23 February 2019), which is Python module to calculate average nucleotide identity (ANI). For comparative analysis, complete genome sequences of bacteria in GenBank format of B. animalis subsp. animalis ATCC 25527 (GCA_000260715.1_ASM26071v1) and subsp. lactis DSM 10140 (GCA_000022965.1_ASM2296v1) were downloaded using the command line tool wget from the NCBI FTP site (ftp://ftp.ncbi.nlm.nih.gov/genomes/) on 27 March 2019.

 Table 1

Metadata of subjects in this study.

SubjectAge at time of samplingGenderIntake frequency of yogurtLast intake yogurt before fecal sampling Strains contained in yogurt
130Male3 or 4 times a weekBifidus Yogurt*Bifidobacterium longum, Lactobacillus delbrueckii subsp. bulgaricus,
Streptococcus thermophilus
235, 45Malea few times a monthnot applicablenot applicable

*Bifidus Yogurt is commercial products of MORINAGA MILK INDUSTRY CO., LTD.

 Table 2

Genomic features of samples used in this study.

Sample% BUSCO Score (Complete + Partial)Genome fraction (%)GC content (%)Number of contigsTotal contig size (bp)Largest contig (bp)N50 (bp)Number of CDSs
1-Y010098.860.5151,917,421681,743339,9701,571
2-Y010098.860.5151,918,1421,021,7331,021,7331,561
2-Y1010098.460.5151,910,072681,755339,9401,561

Sample name represents the subject and the year (Y) after first sampling.

GC content (%): The relative frequency (percentage) of guanine and cytosine residues (G + C)/(A + T + G + C)

CDSs: coding sequences

Nucleotide sequence alignments for core genes, which are defined as single-copy genes that are common across all genomes, were produced using Roary v3.12.0 [20] with a minimum blastp percentage identity of 95, and MAFFT v7.407 [21]. A phylogenetic tree was constructed using FastTree v2.1.3 [22] with the GTR + CAT model. The phylogenetic tree was rooted with midpoint rooting using the phangorn package v2.4.0 (https://github.com/KlausVigo/phangorn) and drawn using the ape package v5.3 (http://ape-package.ird.fr/) in R v3.4.2 (https://www.r-project.org/). For SNP analysis the nucleotide sequences of 11 genomes of B. animalis subsp. lactis strain: DSM 10140 (GCA_000022965.1_ASM2296v1), AD011 (GCA_000021425.1_ASM2142v1), B420 (GCA_000277325.1_ASM27732v1), BB-12 (GCA_000025245.1_ASM2524v1), BLC1 (GCA_000224965.2_ASM22496v2), Bi-07 (GCA_000277345.1_ASM27734v1), Bl-04 (GCA_000022705.1_ASM2270v1), Bl12 (GCA_000414215.1_ASM41421v1), CNCM I-2494 (GCA_000220885.1_ASM22088v1), KLDS2.0603 (GCA_000816205.1_ASM81620v1) and V9 (GCA_000092765.1_ASM9276v1) were downloaded using the command line tool wget from the NCBI FTP site on 26 September 2019. The genome alignment of two genomes isolated from volunteer 2 and 11 downloaded genomes and calculating SNPs were performed using MAUVE v20150226 [23] with default parameters. Heatmap of SNP matrix was drawn using the corrplot package v0.84 (https://cran.r-project.org/web/packages/corrplot/) in R v3.4.2.

Results and Discussion

The three draft genome sequences of B. animalis analyzed in this study contained 15 contigs consisting of 1,910,072 to 1,918,142 bp, with a G+C content of 60.5% and 1,561 to 1,571 putative coding sequences (Table 2). The complete genome sequence of B. animalis is ~1.94 Mbp with a G+C content of 60.5 %, and 1,600 protein-encoding genes [24], which is most consistent with the sequence results of this study.

To infer the phylogenetic relationships, we built a rooted phylogenetic tree based on a concatenated nucleotide sequence alignment of the 1,176 core genes from 5 strains, included the 3 strains isolated from the volunteers and the two reference genomes of two B. animalis subspecies obtained by downloading from NCBI FTP site (Figure 1). The core genome phylogeny indicated that the most basal lineage was B. animalis subsp. animalis, which was followed by the clade consisting of B. animalis subsp. lactis, and the strains isolated from the volunteers.

A previous study showed that B. animalis subsp. lactis was rarely found in intestinal biopsy samples, whereas it was frequently detected in fecal samples [25], indicating that this subspecies detected in human fecal samples may not colonize in the human gut but was supplied as probiotics. However, the volunteer 2 had very similar strains that were sampled at a 10-year interval. This result suggested possibilities that the dietary habits of this volunteer, such as yoghurt intake, had not changed during the 10 years intervention, or that B. animalis subsp. lactis strains had colonized in his gut.

To investigate whether strains isolated from volunteer 2 were due to his dietary habits, we compared the number of SNPs between the nucleotide sequences of 11 reference genomes obtained by downloading from NCBI FTP site and that of two genomes isolated from volunteer 2. As the result, the average number of the SNPs between two strains was 281 (the minimum number of SNPs was 22 and the maximum number of that was 814: Figure 2). In Japan, two dairy products containing B. animalis subsp. lactis are sold: DANONE BIO® (Danone Japan Co., Ltd., Tokyo, Japan), which contains B. animalis subsp. lactis CNCM I-2494 (https://www.danone.co.jp/bio/about/powerofbe80/be80/; accessed 24 September 2019) and BifiX® (EZAKI GLICO Co., Ltd., Osaka, Japan), which contains B. animalis subsp. lactis GCL2505 (https://www.glico.co.jp/laboratory/bifix/02.html; accessed 24 September 2019). The number of SNPs between CNCM I-2494 and strains isolated from volunteer 2 (2-Y0; 312, 2-Y10; 323) were more than the average of SNPs (281), which implies that strains isolated from volunteer 2 were not supplied by DANONE BIO® (Figure 2). The genome of B. animalis subsp. lactis GCL2505 is not registered to NCBI FTP site. Probiotic bacterium supplied by commercial product is probably an identical strain. SNPs between strains isolated from volunteer 2 was 27, which was more than SNPs between Bl-07 and Bi-04. These two strains were differently isolated, and phylogenetically close relationship is consistent with a previous study [26]. The result supports that strains isolated from volunteer 2 were not supplied by dietary habits. Detailed survey on dietary habits and a larger number of volunteers are required to conclude whether a strain of B. animalis subsp. lactis colonize in the human gut.

Previous studies related to the B. animalis in the human gut were mainly based on the 16S rRNA amplicon sequence [27-29]. This paper is the first report of draft genome sequences of B. animalis that includes multiple samples isolated from a single Japanese individual, although the study involved only two volunteers. These results provide insight into the in vivo colonization of Bifidobacterium and personalized probiotic supplementation.

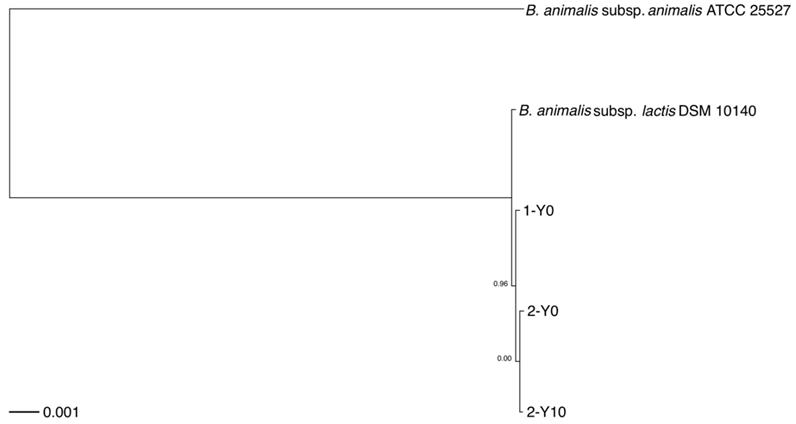

 Figure 1

Rooted phylogenetic tree of strains analyzed in this study. Rooted phylogenetic tree obtained from a concatenated nucleotide sequence alignment of the 1,176 core genes of five B. animalis strains, consisting of the three strains isolated from the two volunteers and reference genomes of two B. animalis subspecies. The horizontal bar at the base of the figure represents 0.001 substitutions per nucleotide site. The FastTree branch support values are indicated. 1-Y0, B. animalis isolate from volunteer 1; 2-Y0, B. animalis isolate from volunteer 2, first collection time point; 2-Y10, B. animalis isolate from volunteer 2, second collection time point

J Genomics Image (Click on the image to enlarge.)

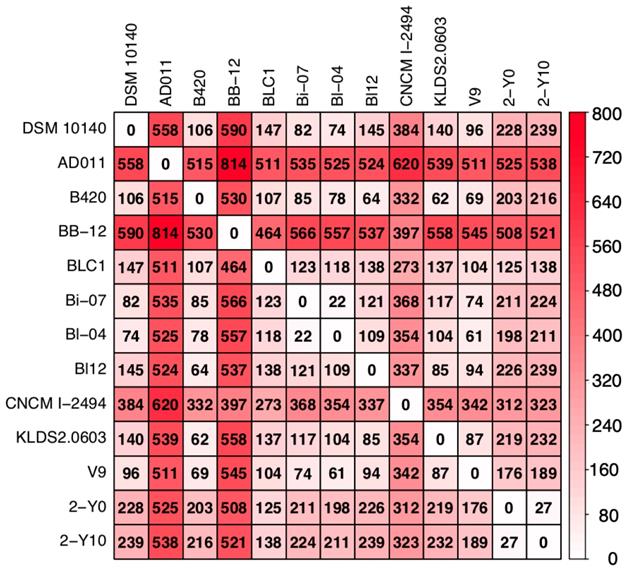

 Figure 2

Heatmap showing the number of single nucleotide polymorphisms (SNPs) in nucleotide sequences of genomes isolated from volunteer 2 and 11 publicly available B. animalis subsp. lactis strains. The number in matrix represents the number of putative SNPs between two strains calculated by Mauve. The color represents abundance of SNPs.

J Genomics Image (Click on the image to enlarge.)

Nucleotide sequence accession number

The draft genome sequence of the three strains isolated from the volunteers (1-Y0, 2-Y0, and 2-Y10) has been deposited at GenBank/EMBL/DDBJ under BioProject number PRJDB8215, BioSample number SAMD00168440, SAMD00168441, and SAMD00168442 respectively, and accession number BJKG00000000, BJKH00000000, and BJKI00000000 respectively (accession range: BJKG01000001-BJKG01000015, BJKH01000001-BJKH01000015, and BJKI01000001-BJKI01000015). The version described in this paper is the first version (BJKG01000000, BJKH01000000, and BJKI01000000). The raw reads have been deposited in the DDBJ Sequence Read Archive (DRA) under Submission DRA008418.

Abbreviations

SCFA: short-chain fatty acid; PBS: phosphate-buffered saline; TOS: transgalactosylated oligosaccharide; MRS: De Man, Rogosa and Sharpe; SNPs: single nucleotide polymorphisms.

Acknowledgements

We thank Ms. Yuka Ohara, Mrs. Mitsuko Komatsu, and Noriko Kagata for technical support; Drs. Yasuyuki Ohkawa, Tetsuya Hayashi, Yasuhiro Gotoh, and Keiji Nakamura for genome sequencing; Dr. Yoshitoshi Ogura for data analysis; Drs. Jiayue Yang, Shinnosuke Murakami, Naoki Tanigawa, Yongshou Yang, Chiharu Ishii, and Ms. Nao Takeuchi for critical discussions. This work was partly performed in the Cooperative Research Project Program of the Medical Institute of Bioregulation, Kyushu University. This work was supported in part by JSPS KAKENHI (grant no. 16H04901, 17H05654, and 18H04805 to S.F.), JST PRESTO (grant no. JPMJPR1537 to S.F.), JST ERATO (grant no. JPMJER1902 to S.F.), AMED-CREST (grant no. JP19gm1010009 to S.F.), the Takeda Science Foundation (to S.F.), the Food Science Institute Foundation (to S.F.), the Program for the Advancement of Research in Core Projects under Keio University's Longevity Initiative (to S.F.), the Yamagata Prefectural Government and the city of Tsuruoka (to M.T.), and Taikichiro Mori Memorial Research Fund (to T.T.). Sequence analysis in this study was supported by JSPS KAKENHI (grant no. 16H06279 to PAGS).

Ethics Committee Approval and Patient Consent

This study was approved by the Ethics Committee of Keio University Shonan Fujisawa Campus and Kensyou-kai Incorporated Medical Institution under the approval number 195 and 20170915-4, respectively. Both subjects were informed of the purpose of this study, and written consent was obtained from both subjects.

Competing Interests

The authors have declared that no competing interest exists.
