J Genomics 2023; 11:9-13. doi:10.7150/jgen.78761 This volume Cite

Research Paper

Draft genome sequencing and assembly of Risso's dolphin, Grampus griseus

Jayan D.M. Senevirathna1,4 Corresponding address, Ryo Yonezawa1, Taiki Saka1, Yuka Hiramatsu1, Ashley Rinka Smith1, Yoji Igarashi2, Kazutoshi Yoshitake1, Shigeharu Kinoshita1, Noriko Funasaka3, Shuichi Asakawa1 Corresponding address

1. Laboratory of Aquatic Molecular Biology and Biotechnology, Department of Aquatic Bioscience, Graduate School of Agricultural and Life Sciences, The University of Tokyo, Japan.
2. Department of Life Sciences and Chemistry, Graduate School of Bioresources, Mie University, Japan.
3. Department of Life Sciences, Graduate School of Bioresources, Mie University, Japan.
4. Department of Animal Science, Faculty of Animal Science and Export Agriculture, Uva Wellassa University, Sri Lanka.

Citation:
Senevirathna JDM, Yonezawa R, Saka T, Hiramatsu Y, Smith AR, Igarashi Y, Yoshitake K, Kinoshita S, Funasaka N, Asakawa S. Draft genome sequencing and assembly of Risso's dolphin, Grampus griseus. J Genomics 2023; 11:9-13. doi:10.7150/jgen.78761. https://www.jgenomics.com/v11p0009.htm
Other styles

File import instruction

Abstract

Graphic abstract

The Risso's dolphin (Grampus griseus) is one of the migratory marine mammals and they have commonly dispersed in tropical and temperate seas. It is a least concerned species in the IUCN red list of threatened species. However, their population size and factors affecting their population structure are unknown. Due to the wide distribution of this species, their populations might be genetically stable and less structured. To support genetic studies on dolphins and other marine mammals, we assembled the draft genome of Risso's dolphin that was found in Japan. The tissue samples were used to extract high molecular DNA and subjected to sequencing by Illumina HiSeq X, Oxford Nanopore MinION, and Bionano Saphyr. The assembled hybrid genome was 75.9% of complete eukaryotic BUSCOs and the genome size was 2.256 Gb with 2.042 Mb of scaffold N50. De novo assembly of this genome by Bionano Saphyr recovered 2.036 Gb total genome map length and structural variations. The gene structures of this draft genome were identified by BRAKER2, and 9947 genes were recovered. The data will be useful for future studies of cetaceans.

Keywords: Cetacean, Dolphin, Genome sequencing, Hybrid genome assembly, Vertebrate genomes

Introduction

Due to several factors, marine mammals are vulnerable, therefore conservation of genetic resources, population genetic analysis, level of inbreeding, and diversity of these animals are currently highly important to study. Risso's dolphin (Grampus griseus) is a well-focused migratory dolphin species. They are abundant in all tropical and temperate seas but may not cross polar regions. Risso's dolphin shows remarkable color patterns in different ages, a unique dentition with a smaller number of teeth compared to other cetaceans, a distinctive shape of the head with less/no beak, around three meters long body size of adults, and social animals with less sexual dimorphism [1]. The family Delphinidae, oceanic dolphins include toothed whale species of similar/different sizes, colors, and shapes. This group of animals always represents taxonomic difficulties in traditional methods, therefore, interest in genetic studies. However, a recent study reported that Grampus griseus belongs to the sub-family Globicephalinae [2] paraphyletic to Orcaella spp. [3]. The genome sizes of cetaceans' ranges from 2-5 Gb [4], and they show gene mutations when adapting to aquatic life [5]. Hence, genome evaluation of cetaceans is essential to identify phylogeny, closest relatives, and convergent evolution.

We sequenced and assembled data from different next-generation sequencing (NGS) tools to produce a standard draft genome of Risso's dolphin. Assembly of sequence reads appropriately is necessary to have a reliable reference genome [6]. In this study, we aimed to select recently developed assembly tools that suit large vertebrate genomes with a high background noise. Finally, Bionano Saphyr was intended to produce a hybrid assembly of draft genomes of Risso's dolphin into contig/scaffold level. The data from our Risso's dolphin genome project will be useful for comparative studies of cetaceans in the future.

Materials and Methods

Sample preparation and sequencing

Tissue samples of Risso's dolphin were received from Taiji Fisheries Association, Wakayama, Japan (sample ID: 19TK409, male) under the cooperation of biological surveys by the National Research Institute of Far Seas Fisheries, Japan Fisheries Research and Education Agency. A voucher sample (UMUT RV20210330-01) has been preserved at The University Museum, The University of Tokyo, Tokyo, Japan. Initially, a muscle sample was used to extract DNA following the protocol of DNeasy Blood & Tissue Kits (Qiagen, Hilden, Germany). Then, the Nextera DNA Flex Library Prep kit (Illumina, San Diego, CA, USA) was used to prepare the DNA library (insert size of 400 bp) and short-read sequencing was done by Illumina HiSeq X Ten platform (Macrogen, Tokyo, Japan). High molecular weight (HMW) DNA was extracted from a blood sample using the NucleoBond HMW DNA extraction kit (MACHEREY-NAGEL, Düren, Germany). Long-read library was prepared by a ligation sequencing kit and real-time sequencing was performed by the Oxford Nanopore MinION system (Oxford Nanopore Technologies, Oxford, UK) in our laboratory. A liver sample was used for DNA extraction and sequencing was done by Bionano Saphyr (BioNano Genomics, San Diego, CA, USA).

Draft genome assembly

Initially, short-read sequencing data was assembled with long-read data using the Long Reads Scaffolder (LRScaf 1.8.1, https://github.com/shingocat/lrscaf) [7]. The suitable statistics for this algorithm were checked for 1,000 times array by grid engine technique. The best assembly was performed with 1,000 bp minimum contig length and 1,300 bp maximum overhang length. At first, short reads were aligned against the draft assemblies by minimap2 and improved via the LRScaf using long read scaffolds. The Bionano Saphyr system (ASONE, Japan) generated a de novo genome (Tools Version 1.6.1, Bionano Genomics, San Diego, CA, USA) and further aligned by scaffolding with Bionano optical mapping to fill the gaps in the hybrid genome that generated by the LRScaf scaffolder. Genome statistics were produced by the Assembly-stats (https://github.com/sanger-pathogens/assembly-stats) and the ABySS [8] (https://github.com/bcgsc/abyss).

Repeat analysis and gene prediction

Finally, the hybrid genome of Risso's dolphin that prepared by Bionano + MinION + HiSeq X technologies was used for gene prediction. The completeness of the hybrid draft genome of Risso's dolphin was checked by BUSCO analysis [9,10] against Eukaryotic BUSCOs (version 3.0.2). Additionally, we used AUGUSTUS [11] and BRAKER2 [12] for genome annotation and gene prediction with RNA-seq data (DDBJ Bioproject - PRJDB11720). The predicted transcript list was used to identify potential genes via Enrichr [13]. This gene set was used to identify functional annotations and gene ontologies via the WEB-based GEne SeT AnaLysis Toolkit [14].

Results and Discussion

The predicted genome size of Risso's dolphin is about 2.3-2.7 Gb comparable to other species in the family Delphinidae, like Tursiops truncates (PRJNA625792), Sousa chinensis (PRJNA449414), Platanista minor (PRJNA399467), and Lipotes vexillifer (PRJNA232751, PRJNA174066). We sequenced both short and long-read libraries and generated around 1,875.3 Gb of DNA data. According to Table 1, we received 987,466,434 short-reads from HiSeq X and 1,978,053 of long-reads from MinION. The first hybrid assembly of HiSeq X + MinION produced 473,906 contigs. Finally, the second assembly of HiSeq X + MinION + Bionano produced 470,000 bp of effective contigs (Table 2). Of these, 822 Mb (36%) out of 2.256 Gb was able to scaffold, and 1.01 Mb was the only Scaffold N50 that could be stretched out from Bionano. As an advantage of the hybrid approach of HiSeq X short-reads + MinION long-reads + Bionano scaffolding, our assembly method of Risso's dolphin genome has been improved and completed 75.9% of eukaryotic BUSCOs (Table 3).

Although the genome completion is 75.9%, the Bionano genomics has identified structural variations. In summary, 74 deletions, 232 insertions, and 2,421 inter-chromosomal translocation breakpoints were identified. The gene structure information file (gene transfer format) produced by the BRAKER2 pipeline showed 494,731 coding sequences (exons), 349,409 introns, 145,716 start codons, and 136,520 stop codons, and 175,481 transcripts. The predicted transcripts have been identified by NCBI NT top hit (>70%) and UniProt Swiss-Prot top hit. There were 31 transcripts with ≥ 10,000 bp length, ≥ 95% NCBI NT similarity for 15 proteins (MUC5B, OBSCN, WDR90, RYR1, UBR4, BSN, CELR3, PCD16, ZN469, RN213, SZT2, KMT2D, LRP1, HMCN2, PLEC). Finally, these transcripts were filtered by Enrichr to identify potential protein coding gene IDs and it was 9,947 genes. In which, 3,169 gene IDs were unambiguously mapped to 3,169 unique Entrez gene IDs and 6,778 gene IDs could not be mapped to any Entrez gene ID. Out of the identified 3,169 genes, pantothenate and CoA biosynthesis, and cholesterol metabolism were highly enriched functions (Figure 1). Identification of lipid metabolism-related genes will be important for studies of convergent evolution and macroevolutionary characteristics of cetaceans [15].

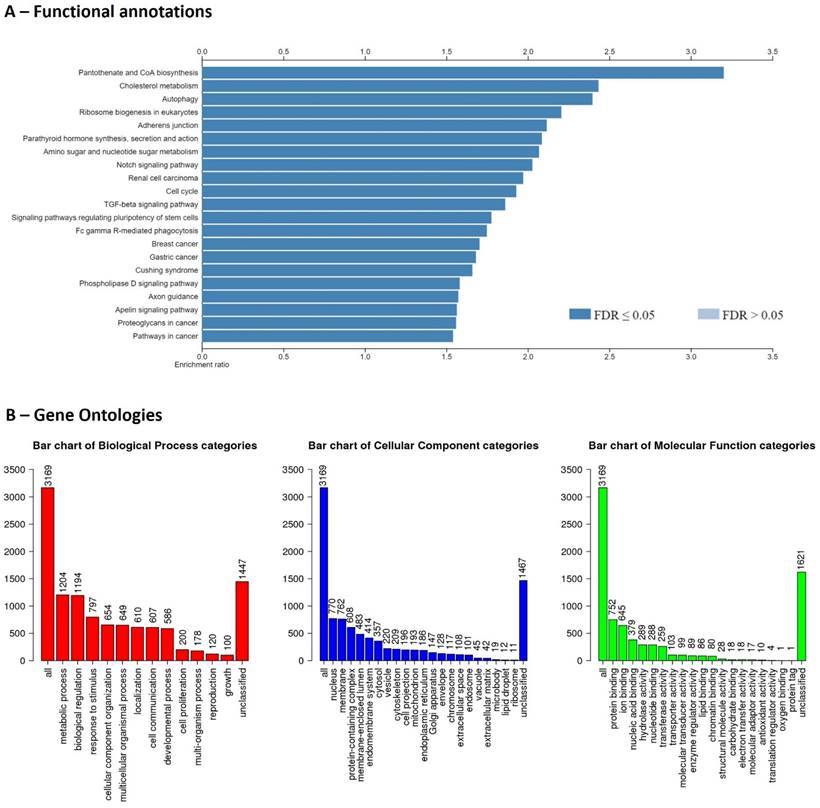

 Figure 1

Functional enrichments (A) and gene ontologies (B) for recovered genes of the draft genome of Risso's dolphin.

J Genomics Image
 Table 1

Raw data and assembly statistics

StatisticsHiSeq X raw dataMinION raw dataDe novo BionanoHybrid assembly I (MinION + HiSeq X)Hybrid assembly II (Bionano + MinION + HiSeq X)
Total read length (bp)11,790,000,0007,738,000,000671,653,189,0002,575,341,3022,256,000,000
Number of reads/contigs987,466,4341,978,0532,491,307473,906470,000
Sequencing depth56.47X6.4X46.17X--
Average read length (bp)4,174.534,000.93-5,434.296,384.70
Longest read length (bp)192,510192,510-766,88227,508,099
Maximum contig length (bp)192,509192,509-719,75613,170,000
Minimum contig length (bp)500500-500500
N 20 (bp)22,27026,608154,740838,827
N50 (bp)10,43511,605902,00078,91780,163
Counts @ N50316,595184,732-9,5572,680
N100 (bp)5252-2002
Counts @ N1002,878,0531,978,053-473,906470,000
N20 (bp)22,27026,608-142,933838,827
L50306,128177,054-8,9894,290
 Table 2

Bionano statistics

StatisticsOriginal BNGOriginal NGSNGS used in Hybrid scaffoldHybrid ScaffoldHybrid + not scaffolded NGS
Count4,668473,9067,6271,580470,000
Mean length (Mb)0.4360.0050.1180.8370.006
N50 (Mb)0.9020.0790.1282.0420.116
Max length (Mb)20.5270.7670.76727.50827.508
Total Length
(Mb)
2,036.3482,575.341896.4781,321.9483,000.811
 Table 3

BUSCOs of draft genomes

BUSCOsIllumina HiSeq XHybrid HiSeq X + MinIONHybrid HiSeq X + MinION + Bionano
Complete57.1%78.2%75.9%
Single-copy54.1%72.6%70.0%
Duplicated3.055.6%5.9%
Fragmented18.8%9.6%10.6%
Missing24.1%12.2%13.5%
Total BUSCO groups303

Acknowledgements

We would like to thank the Taiji Fisheries Association, and researchers of National Research Institute of Far Seas Fisheries, Japan Fisheries Research and Education Agency for helping this research.

Data Availability Statement

This Whole Genome sequencing project has been deposited at DDBJ/GenBank under the accession BRYD01000001-BRYD01469942, BioProject accession PRJDB14227, BioSamples accession SAMD00494946. The raw data files from different sequencing methods as follows. Illumina HiSeq X data (bioproject; PRJDB11931, biosample; SAMD00389444, DRA accession; DRA012378, DRX297108, DRR307688). Oxford Nanopore MinION data (bioproject; PRJDB14227, biosamples; SAMD00467141, SAMD00467140, DRA accessions; DRA014710, DRX385608, DRR399904).

Ethics Statement

We used a commercial sample; hence ethical approval was not needed.

Competing Interests

The authors have declared that no competing interest exists.
